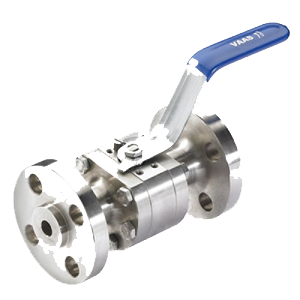

Special Valves
Product Specification:
♦ Design : Two way
♦ Size Range : 8mm to 150mm (1/4" to 6")
♦ Pressure Rating: Upto CI.2500 Rating (ANSI/ASME)
♦ End Connections: ScreWed Socket Welded Butt Welded Flanged
♦ MOC-Body and Ends: Carbon Steel (Bar Machined) Stainless Steel (Bar Machined)
♦ MOC?Seats: Delrin PEEK
♦ Applications: High pressure Valves
♦ Applicable Standards: ASME B16.34 ASME B 16.10 ¥Å¥Í 12266-1 API 607/ISO 10497
3 Piece Valve (42 & 47 Series)
Product Specification:
♦ Design : Standard Two Way
♦ Size Range : 8mm - 50mm (1/4" to 2")
♦ Pressure Rating: CI.800 Rating
♦ End Connections: Screwed, Socket Welded;Butt Welded, Flanged Tri-clamp etc.
♦ MOC-Body and Ends: Carbon Steel, Stainless Steel, Duplex Stainless Steel, Monel;Hastelloy, Alloy 20 etc.
♦ MOC?Seats: PTFE, TFM, Glass filled PTEE, Carbon filled PTEE, PEEK, Delrin
♦ Applications: Standard valve suitable for variety of standard and special applications.
♦ Applicable Standards: ASME B16.34, ¥Å¥Í 12266-1, API 607/ISO 10497

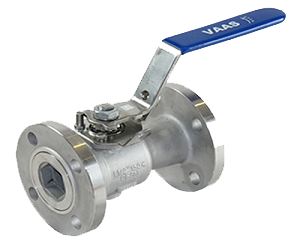

Flanged Valves 32 Series
Product Specification:
♦ Design : Regular Bore Design Standard Two Way
♦ Size Range : 15mm to 250mm
♦ Pressure Rating: CI.300 (ANSI/ASME)
♦ End Connections: Flanged
♦ MOC-Body and Ends: Steel, Stainless Steel, Duplex Stainless Steel, Monel Hastelloy Alloy 20 etc.
♦ MOC?Seats: PTFE TFM Glass filled PTEE Carbon filled PTEE ¥Ñ¥Å¥Å¥Ê
♦ Applications: Standard valve suitable for variety of standard and special applications.
♦ Applicable Standards: B16.34 ASME B 16.10 ¥Å¥Í 12266-1 AP| 607/|SO 10497

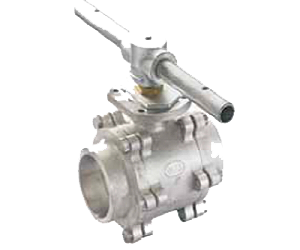

Utility Valves
Product Specification:
♦ Design : Standard Two Way Full and Regular
♦ Size Range : 15mm to 150mm ((1/2" to 6")
♦ Applications: Carbon Steel Stainless Steel Duplex Stainless Steel Monel Hastelloy Alloy 20 etc.

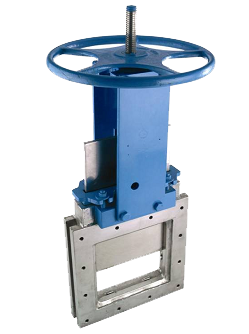

Knife Gate Valves
VAAS offers a range of custom-built square or rectangular knife gate valves. These are uni-directional knife gate valves with the same features (single side raised seat and knife gate pushed to the seat by jams) and offer reliable operation in handling dry powder material. The valve dimensions are made to suit customer's requirements. Typical construction features fabricated steel or stainless steel body. These valves are not generally designed to provide tight shut-off and as such seat leak tests are not conducted for these valves.
