BUTTERFLY VALVE RUBBER LINED

The body liner which also functions as the soft seat, comes in an integrally molded (bonded) version and offers 100% bi-directional sealing against vacuum to rated pressures of PN10.The wafer style body has universal design to fit between pipe flanges of almost all popular flange standards.INTERVALVE BUTTERFLY VALVE.

Technical Specification:
 ♦  Valve type : Centric Disc Rubber Lined Butterfly valve with a single piece body.
 ♦  Body type : Short wafer
 ♦  Seat type : Bonded seat
 ♦  End connection : Wafer sandwiched
 ♦  Size range : DN 40 to DN 200
 ♦  Pressure rating : *ASME Class 150 (max)

Wafer Type Swing Check Valve

Intervalve check valve models IVC and IVCT are primarily single plate swing check valve with a short pattern wafer body conforming to the API 6D and ANSI B16.10 face to face dimensions. The valve has a simple but robust construction with reliability. The low inertia disc design enables the valve to open or close with a very low differential pressure which make them ideal for services operating under low differential pressures.

The pressure drop across the valve in fully open condition is relatively low and makes them ideal for pump discharge duties. The eccentric disc shaft in combination with the disc seat guarantees a positive shut off of the returning media.

Cast Steel Globe Valves

The IVGLC range of globe valves incorporates state of the art design features to provide a rugged construction, reliable operation and long life; Suitable for the just benign to most belligerent applications covering all the process industries including oil & gas, refineries, petro chemicals, fertilizers, power plants and common utilities. An ideal valve for the flow isolation as well as Flow regulation duty.

The high pressure range incorporates a pressure sealed bonnet design for reliable sealing. The valves are available in flanged or butt welded end connection. Valves can be provided with special features like water sealed gland for vacuum service, bypass arrangements for pressure balancing, special cleaning for oxygen service, multi start spindle for low effort operation, extended spindle for pit mounted / buried service, NACE compliant materials for sour service in petroleum industries, etc. The valves can be provided with a motor operation wherever required.

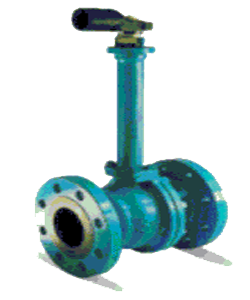

Ball Valves

These ball valves meet test specifications as per BS 6364. Applications such as deep freezing and cooling involve cryogenic technology based on nitrogen, oxygen and other gases.

A special type of PTFE grade ensures excellent mechanical resistance and stable torques at low temperatures. The cryogenic stem extension is provided. It is manufactured as a one piece item with the stem for increased mechanical strength. This positions stem and stem packing away from cryogenic fluid to prevent stem seal freeze up and ensures superior performance. These ball valves can be provided with Integral mounting pad ISO 5211 and can be used for actuation.

Key Features:
 ♦  2/3-PIECE, 2-WAY / 3-WAY, BALL VALVES
 ♦  ISO 5211 Mounting Pad Allows for mounting of actuator.
 ♦  Maintenance free live loaded double sealing stem packing ensures high cycles life and
     positive sealing.
 ♦  Blow-Out Proof Stem.

CHECK GATE & GLOBE VALVES

Pioneers in the industry, we offer Dual Plate Swing Check Valve, Caste Steel Gate Valve, Caste Steel Globe Valve, Cast Steel Swing Check Valve, Forged Steel, Globe & Check Valve and Wafer Type Swing Check Valve from India.
